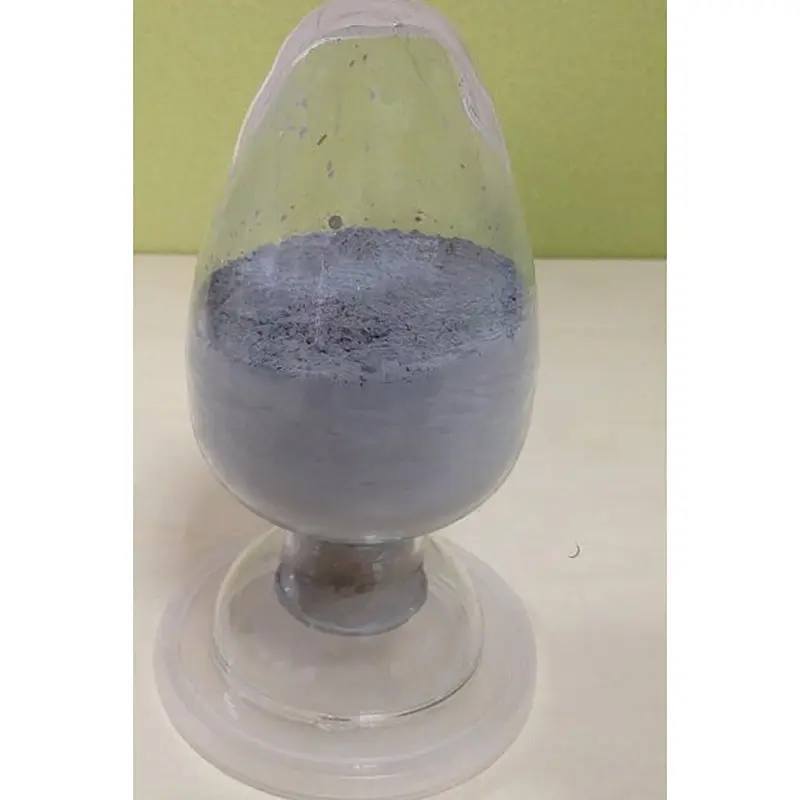

Uncoated Aluminum Powder for Aluminum Pigment Powder
It was collected by sealing atomization, classification, blending and sieving process. During the production process, it is controlled by strict controlling method to keep the particle size distribution and consistent appearance; The particle size of spherical aluminum powder used for aluminum powder is narrow, which ensures good reflectivity, good brightness and hiding power.
Physical properties:

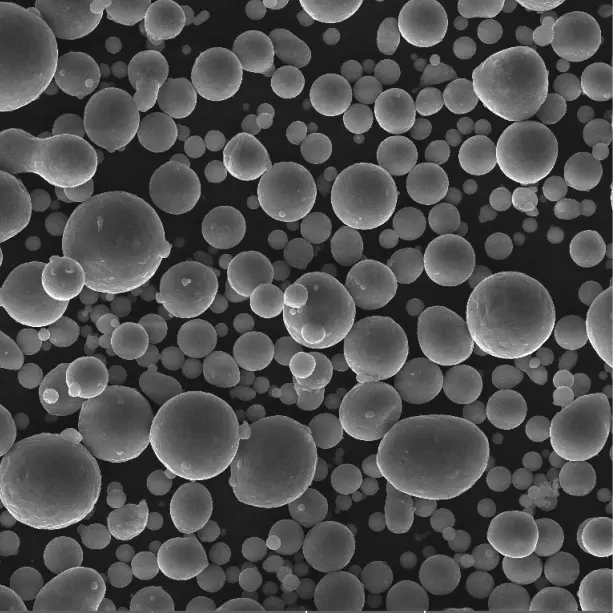

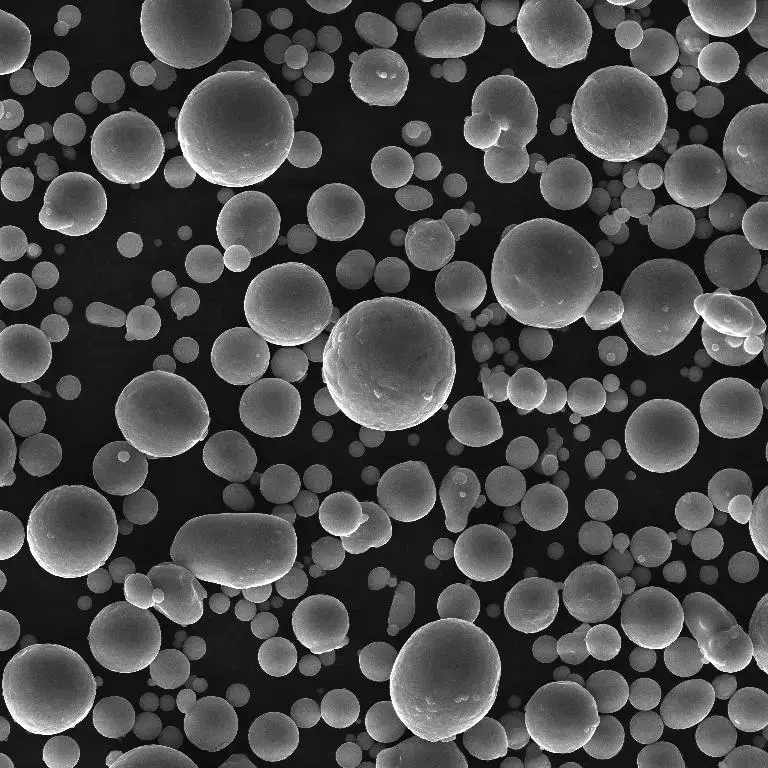

Shape: Spherical
Melting point: 660℃
Density: 2.699g/cm3
Odor: Odorless
Prohibitions: Water, Acid, Alkali, Halogen; Avoid dust spraying in the air and anti-static.
Product particle size: 1~2µm, 2~3µm, 3~4µm, 4~5µm, 5~6µm, 6~7µm, 7~8µm, 8~10µm, 11~13µm, 13~15µm, 15~17µm, 17~19µm, 21~24µm, 26~29µm, 30~33µm
Specification of aluminum powder:
| Model | Grade | Particle Size | Chemical Composition | ||||
| Impurity Content≤% |
Active Al conten |
||||||
| (D50=μm) | Fe | Si | Cu | H2O | ≥% | ||
| JWX | >32 | 32±3.0 | 0.2 | 0.2 | 0.015 | 0.1 | 99 |
| JWX | 26-29 | 27±2.0 | 0.2 | 0.2 | 0.015 | 0.1 | 99 |
| JWX | 24-26 | 25±2.0 | 0.2 | 0.2 | 0.015 | 0.1 | 99 |
| JWX | 21-24 | 22±1.5 | 0.2 | 0.2 | 0.015 | 0.1 | 99 |
| JWX | 19-21 | 20±1.0 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 17-19 | 18±1.0 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 15-17 | 16±1.0 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 13-15 | 14±0.8 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 11~13 | 12±0.8 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 9~11 | 10±0.8 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 8~10 | 9.0±0.5 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 7-8 | 7.5±0.5 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 6~7 | 6.5±0.5 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 5~6 | 5.7±0.3 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 4~5 | 4.3±0.3 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 3-4 | 3.5±0.3 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 2~3 | 2.6±0.2 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
| JWX | 1~2 | 1.7±0.2 | 0.2 | 0.2 | 0.015 | 0.1 | 98 |
Packaging conditions: 25Kg/Iron drum, 160Kg/Iron drum, 200Kg/Iron drum with pallet
Volume: 12.8 tons, 16 tons, 18 tons(Per 20FCL)
Transportation: By road, by air or by sea
Capacity: 8,000 tons annually
Delivery time: 2~3 months including EL application and inspection
Compliance:
Quality control system: GB/T19001:2016 /ISO9001:2015
Environment control system: GB/T 24001:2016 /ISO14001:2015
Quality Assurance:
ICP for testing incoming impurities of aluminum ingot
Laser diffraction testing machine for testing particle size
Moisture tester for testing water content
Oxygen content machine for oxygen volume
Application:

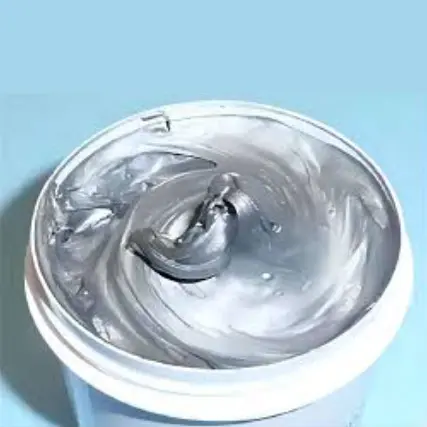

1. Non-leafing aluminum paste;
2. Leafing aluminum paste
Field:
Industrial paint(For automobile paint, vessel paint, anti-corrosion paint)
Printing ink(For packaging coating)
Plastics(For toy, electric parts)
Cosmetics(For nail oil, eye shadow)
Architecture paint
